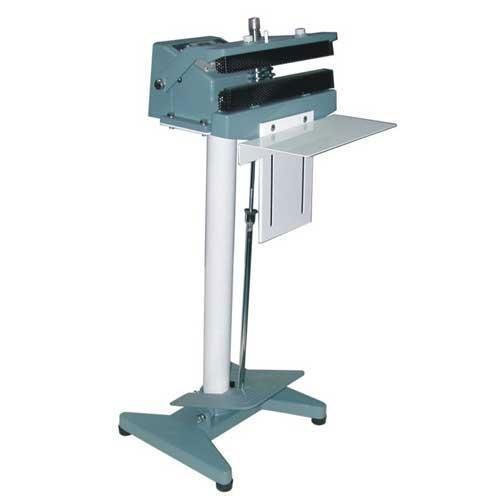

Foot Operated Pouch Sealers and Other Packaging Machines
Home » Continuous Bag /Pouch Sealer

Continuous Bag /Pouch Sealer




Continuous Bag /Pouch Sealer


Bag Sealing machines are used for high speed sealing of bags, bag seealing machiens are available in diffrent models like horizontal feed machines, vertical feed machines, high volume bag sealing machines etc.

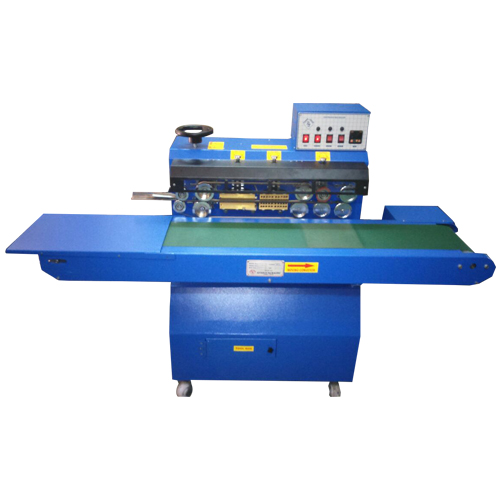

PSCH 7200 / 7202 - Sealing Machine Specially Designed For Horizontal Feed.

Specification
Model PSCH 7202 PSCH 7200
Sealing Width 12/5 mm 5/10 mm
Sealing Speed 9 meter / minute 4 meter / minute
Max Conveyor Load 25 Kg 5 Kg
Conveyor Width 200 mm 125 mm
Temp. Range 0 - 300° C 0 - 300° C
M/C Dimension L x W x H (mm) 1540 x 600 x 1200 mm 800 x 440 x 380 mm
Power 50Hz 1Ø - 220V/5A 50Hz 1Ø - 220V/5A
Appr. Weight 50 Kg 36 Kg
Sealing Machine Specially Designed for Horizontal Feed.

Ask for Price

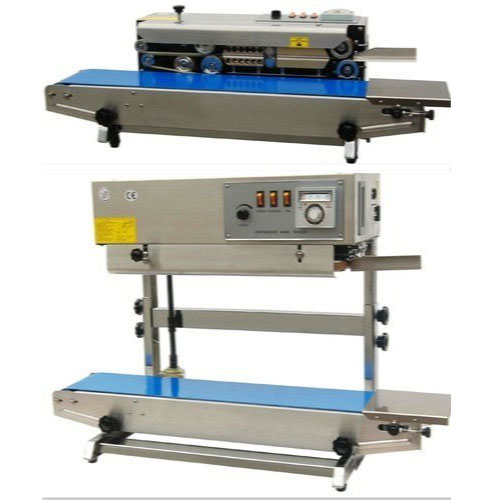

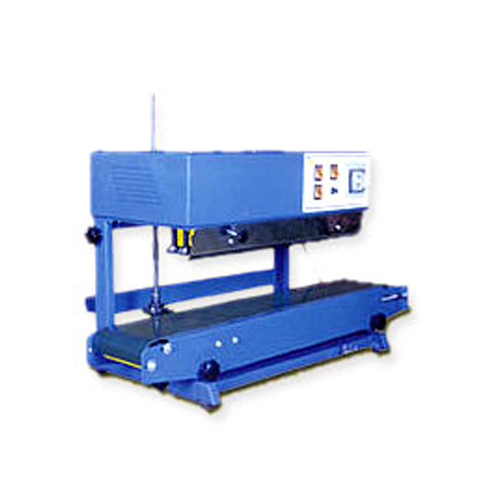

PSCV 7200 - Sealing Machine Specially Designed For Vertical Feed.

Specification
Model PSCV 7200
Sealing Width 5/10 mm
Sealing Speed 4 meter / minute
Max Conveyor Load 5 Kg
Conveyor Width 125 mm
Temp. Range 0 - 300° C
M/C Dimension L x W x H (mm) 800 x 380 x 440
Power 50Hz 1Ø - 220V/5A
Appr. Weight 36 Kg
PSCV 7200-Sealing Machine Specially Designed For Vertical Feed

Ask for Price



PSCV 7205- Sealing Machine Specially Designed For Vertical Feed.

Specification
Model PSCV 7205
Sealing Width 5/10 mm
Sealing Speed 4 meter / minute
Max Conveyor Load 5 Kg
Conveyor Width 125 mm
Temp. Range 0 - 300° C
M/C Dimension  L x W x H (mm) 800 x 380 x 600
Power 50Hz 1Ø - 220V/5A
Appr. Weight 50 Kg
PSCV 7205-Sealing Machine Specially Designed For Vertical Feed

Ask for Price

Bag Sealing Machines, Jar Sealing Machines


PSCV 7209 - Sealing Machine Specially Designed For Vertical Feed.

Specification
Model PSCV 7209
Sealing Width 12/5 mm
Sealing Speed 9 meter / minute
Max Conveyor Load 25 Kg
Conveyor Width 200 mm
Temp. Range 0 - 300° C
M/C Dimension L x W x H (mm) 1540 x 525 x 1515
Power 50Hz 1Ø - 220V/5A
Appr. Weight 150 Kg
PSCV 7209-Sealing Machine Specially Designed For Vertical Feed

Ask for Price

Bag Sealing Machines Manufacturers, Jar Sealing Machines Manufacturers

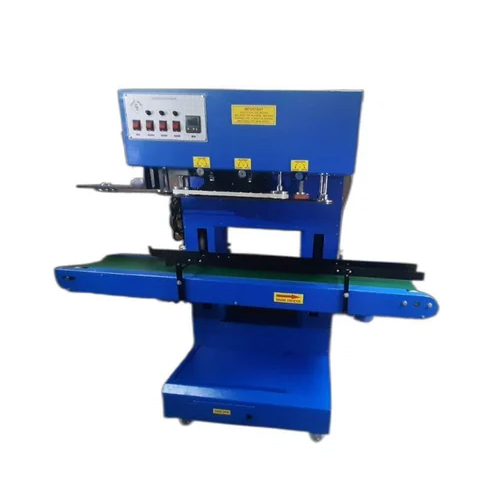

High Volume Bag Sealing Machines

Specification
MODEL HIGH VOLUME BAGS
Sealing Width 12 mm
Sealing Speed 3 meter/minute
Max Conveyor Load 50 kg
Conveyor Belt Width 360 mm
Temp. Range 0-300'C
M/C Dimension LxWxH(mm) 2500 x 800 x 1600
Power 5OHz 3Ø 415V
Appr. Weight 400 kg
High Volume Bag Sealing Machines

Ask for Price
