shrink tunnel machines, heat shrink tunnel

Heat Shrink Packaging Machines

Shrink Tunnel Shrink Chambers

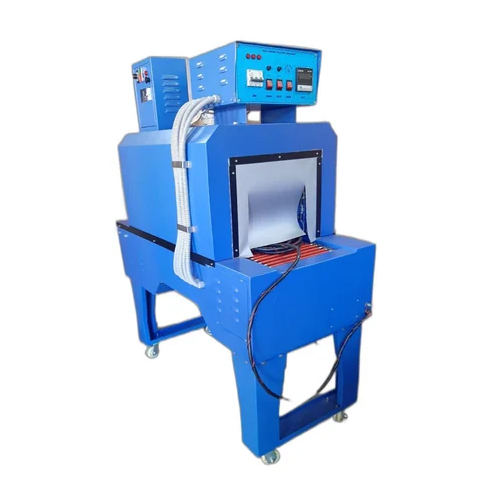

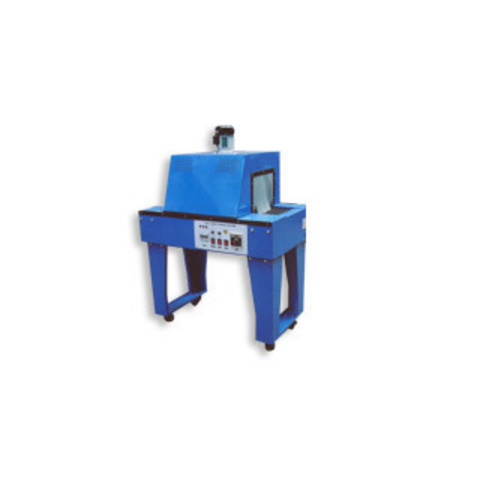

shrink tunnel machines, heat shrink tunnelShrink Tunnel

Shrink Tunnel Machines, heat shrink tunnel machines find applications for Stationery, Sweets, Gift Packets, Confectionery, Welding Rods, Bottles, Cosmetics, etc.

  • Compact in size
  • Rugged Heavy Duty Machine
  • Sturdy Steel Base
  • Accurately controlled Tunnel Temp.
  • Offers Neat, Clean & Wrinkle-less Wrapping
  • Roller Conveyor with Optional Variable Speed
  • Takes shape of your Product with Complete Transparency
  • Enhances Sales Appeal, Cuts Down Packing Cost, Prevents Pilferage


PST 510

Specification
Model PST 510
Power 50 Hz 3Ø - 440V +N +E
Mechanical Dim. L x W x H (mm) 2700 x 900 x 1800
Tunnel Dim. L x W x H (mm) 1200 x 500 x 500
Heater (Kw) 18
Temp. °C 250 ° Max
Motor 1/2 HP Gear Motor + 1/4 HP x 2 ( Top + Bottom Blower)
Conveyor Speed Tunnel Time fix 25 Sec
shrink tunnel, heat shrink tunnel, shrink wrap tunnel

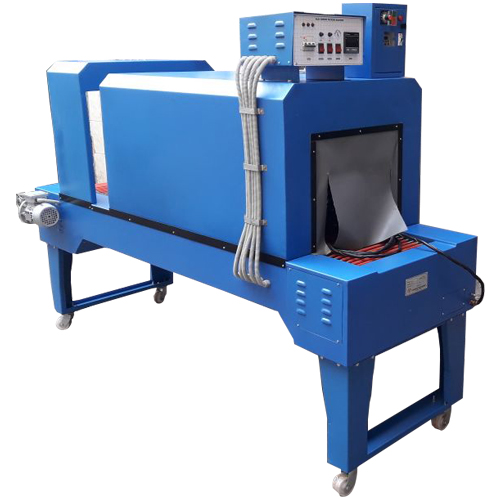

PST 410

Specification
Model PST 410
Power 50 Hz 3Ø - 440V +N +E
Mechanical Dim. L x W x H (mm) 2300 x 800 x 1700
Tunnel Dim. L x W x H (mm) 1200 x 400 x 400
Heater (Kw) 9 / 13.5
Temp. °C 250 ° Max
Motor 1/4 HP Gear Motor + 1/4 HP
Conveyor Speed Tunnel Time fix 25 Sec.
shrink tunnel, heat shrink tunnel, shrink wrap tunnel


PST 310

Specification
Model PST 310
Power 50 Hz 3Ø - 440V +N +E
Mechanical Dim. L x W x H (mm) 1200 x 700 x 1400
Tunnel Dim. L x W x H (mm) 800 x 300 x 300
Heater (Kw) 6
Temp. °C 250 ° Max
Motor 1/6 HP Gear Motor + 1/4 HP
Conveyor Speed Tunnel Time fix 18 Sec.
shrink tunnel, heat shrink tunnel, shrink wrap tunnel


PST 210

Specification
Model PST 210
Power 50 Hz 3Ø - 440V +N +E
Mechanical Dim. L x W x H (mm) 900 x 550 x 1280
Tunnel Dim. L x W x H (mm) 500 x 200 x 200
Heater (Kw) 5
Temp. °C 200 ° Max
Motor 1/8 HP Gear Motor + 1/10 HP
Conveyor Speed Tunnel Time fix 13 Sec.
shrink tunnel, heat shrink tunnel, shrink wrap tunnel


PST 150

Specification
Model PST 150
Power 50 Hz 1Ø - 220V + E
Mechanical Dim. L x W x H (mm) 800 x 500 x 680
Tunnel Dim. L x W x H (mm) 470 x 150 x 150
Heater (Kw) 4
Temp. °C 200 ° Max
Motor 1/10 HP Gear Motor + 1/10 HP
Conveyor Speed Tunnel Time fix 13 Sec.
shrink tunnel, heat shrink tunnel, shrink wrap tunnel


PSTM 150

Specification
Model PSTM 150
Power 50 Hz 1Ø - 220V + E
Mechanical Dim. L x W x H (mm) 950 x 510 x 1900
Tunnel Dim. L x W x H (mm) 470 x 150 x 400
Heater (Kw) 5
Temp. °C 200 ° Max
Motor 1/10 HP Gear Motor + 1/10 HP
Conveyor Speed 40 Bottles/min
shrink tunnel, heat shrink tunnel, shrink wrap tunnel


shrink tunnel machines, heat shrink tunnel

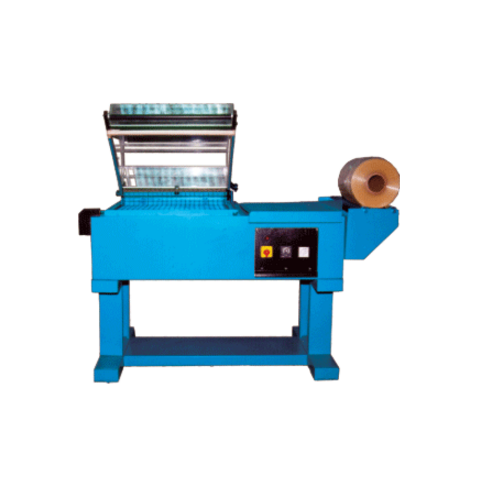

shrink tunnel machines, heat shrink tunnelShrink Chamber


Features
  • Sealing & Shrinking in one operation.
  • Thermostatically controlled temp.
  • Adjustable working platform.
  • Reduced Electrical consumption
  • Easy visible operation

Specification
Model Seal Area Power Con. Power Mec. Dia.
PSSC1510 15" X 10" 1.5 KW 230 V 889X610X610 mm
PSSC2015 20" X 15" 2.1 KW 230 V 1372X711X1270 mm
PSSC2520 25" X 20" 3.0 KW 440 V 1524X838X1270 mm
shrink chambers


heat shrink tunnel machines, shrink chambers
