Other Packaging Machines

Continuous Bag Sealer Semi Auto Cup Filler Cap / Jar Sealing Machines
Online Conveyor System HFoot Operated Direct Heat Sealer Pneumatic Operated Pouch Sealer / Direct Heat Sealer
Horizontal Foot Operated Pouch Seale Vertical Foot Operated Pouch Sealer


bag sealing machines, jar sealing machinesContinuous Bag Sealer

Bag Sealing machines are used for high speed sealing of bags, bag seealing machiens are available in diffrent models like horizontal feed machines, vertical feed machines, high volume bag sealing machines etc.


PSCH 7200 / 7202 - Sealing Machine Specially Designed For Horizontal Feed.

Specification
Model PSCH 7202 PSCH 7200
Sealing Width 8 mm 5/10 mm
Sealing Speed 9 meter / minute 4 meter / minute
Max Conveyor Load 25 Kg 5 Kg
Conveyor Width 200 mm 125 mm
Temp. Range 0 - 300° C 0 - 300° C
M/C Dimension L x W x H (mm) 1025 x 500 x 500 800 x 440 x 380
Power 50Hz 1Ø - 220V/5A 50Hz 1Ø - 220V/5A
Appr. Weight 50 Kg 36 Kg
sealing machine specially designed for horizontal feed.


PSCV 7200 - Sealing Machine Specially Designed For Vertical Feed.

Specification
Model PSCV 7200
Sealing Width 5/10 mm
Sealing Speed 4 meter / minute
Max Conveyor Load 5 Kg
Conveyor Width 125 mm
Temp. Range 0 - 300° C
M/C Dimension L x W x H (mm) 800 x 380 x 440
Power 50Hz 1Ø - 220V/5A
Appr. Weight 36 Kg
sealing machine specially designed for vertical feed


PSCV 7205- Sealing Machine Specially Designed For Vertical Feed.

Specification
Model PSCV 7205
Sealing Width 5/10 mm
Sealing Speed 4 meter / minute
Max Conveyor Load 5 Kg
Conveyor Width 125 mm
Temp. Range 0 - 300° C
M/C Dimension  L x W x H (mm) 800 x 380 x 600
Power 50Hz 1Ø - 220V/5A
Appr. Weight 50 Kg
sealing machine specially designed for vertical feed
bag sealing machines, jar sealing machines

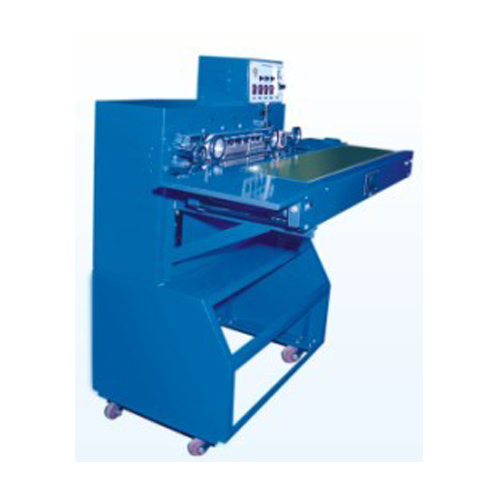

PSCV 7209 - Sealing Machine Specially Designed For Vertical Feed.

Specification
Model PSCV 7209
Sealing Width 8 mm
Sealing Speed 9 meter / minute
Max Conveyor Load 25 Kg
Conveyor Width 200 mm
Temp. Range 0 - 300° C
M/C Dimension L x W x H (mm) 1540 x 525 x 1515
Power 50Hz 1Ø - 220V/5A
Appr. Weight 150 Kg
sealing machine specially designed for vertical feed
bag sealing machines manufacturers, jar sealing machines manufacturers


bag sealing machines, bag sealing machineries

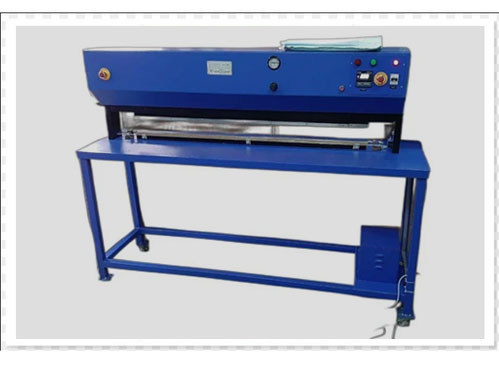

bag sealing machines, bag sealing machineriesHorizontal Foot Operated Pouch Sealer


Features
  • Long service with Electronic
  • Thermo Control Direct Sealing with even heating

Specification
Model PSF-DH 210 PSF-DH 310 PSF-DH 410 PSF-DH 510 PSF-DH 610
Power 50Hz 1Ø - 220V/5A 50 Hz 1Ø - 220V/5A 50 Hz 1Ø - 220V/5A 50 Hz 1Ø - 220V/5A 50 Hz 1Ø - 220V/5A
Mechanical Dim. L x W x H (mm) 350 x 310 x 940 350 x 310 x 940 425 x 310 x 940 525 x 310 x 940 625 x 310 x 940
Sealing Width 10 - 15 mm 10 - 15 mm 10 - 15 mm 10 - 15 mm 10 - 15 mm
Heater (Kw) 150 Watt 200 Watt 250 Watt 300 Watt 350 Watt
Max. Sealing Length 210 mm 310 mm 410 mm 510mm 610mm
foot operated pouch sealer


Vertical Foot Operated Pouch Sealer

Specification
Model PSF-DH 210 PSF-DH 310 PSF-DH 410 PSF-DH 510 PSF-DH 610
Power 50Hz 1Ø - 220V/5A 50 Hz 1Ø - 220V/5A 50 Hz 1Ø - 220V/5A 50 Hz 1Ø - 220V/5A 50 Hz 1Ø - 220V/5A
Mechanical Dim. L x W x H (mm) 350 x 310 x 1140 350 x 310 x 1140 425 x 310 x 1140 525 x 310 x 1140 625 x 310 x 1140
Sealing Width 10 - 15 mm 10 - 15 mm 10 - 15 mm 10 - 15 mm 10 - 15 mm
Heater (Kw) 150 Watt 200 Watt 250 Watt 300 Watt 350 Watt
Max. Sealing Length 210 mm 310 mm 410 mm 510mm 610mm
sealing machine specially designed for vertical feed
bag sealing machines manufacturers, jar sealing machines manufacturers


bag sealing machines manufacturers, jar sealing machines manufacturers

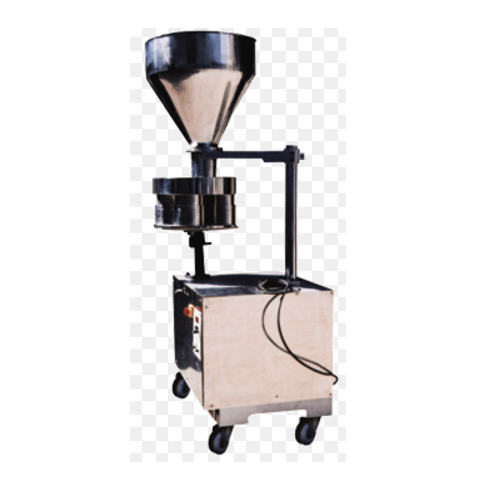

bag sealing machines manufacturers, jar sealing machines manufacturersSemi Auto Cup Filler

Specification
Speed 10 Drops Per Min.
Capacity Minimum 100 gms.
Power 1/2 HP Motor, 220 V 50 Hz1ÿ
M/C Dimension LxWxH (mm) 700 x 700 x 1680
Appr. Weight 275 Kgs.
semi auto cup filler


bag sealing machines manufacturers, jar sealing machines manufacturers

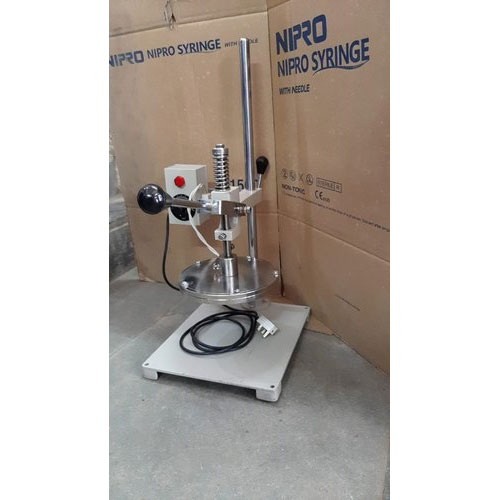

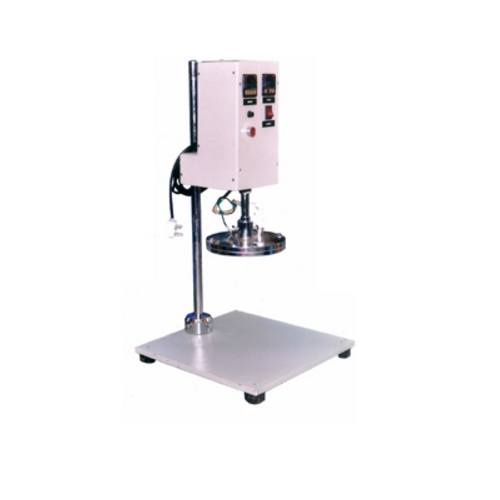

bag sealing machines manufacturers, jar sealing machines manufacturersCap / Jar Sealing Machines


Features
  • Hand / Pneumatic Operation
  • Sealing diameter to suit your requirements
  • Electronic Temp.
  • Control Electronic Timer

Specification
  • Custom Built
cap/jar sealing machines


bag sealing machines, bag sealing machineries

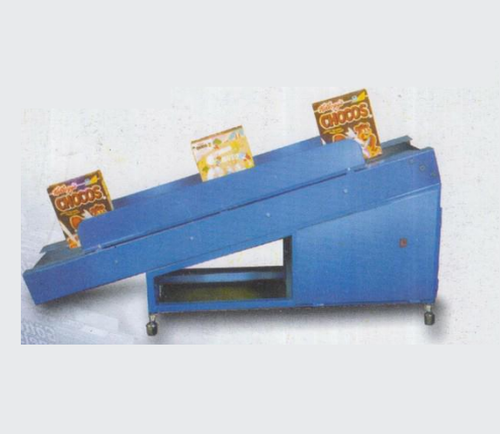

bag sealing machines, bag sealing machineriesOnline Conveyor Systems


Features
  • Length Width & Height to suit your requirement
  • Rugged Heavy Duty Machine
  • Sturdy Steel Base
  • Roller / Belt / Slat Conveyor with Optional Variable Speed

Specification
  • Custom Built
online conveyor systems


bag sealing machines, bag sealing machineries

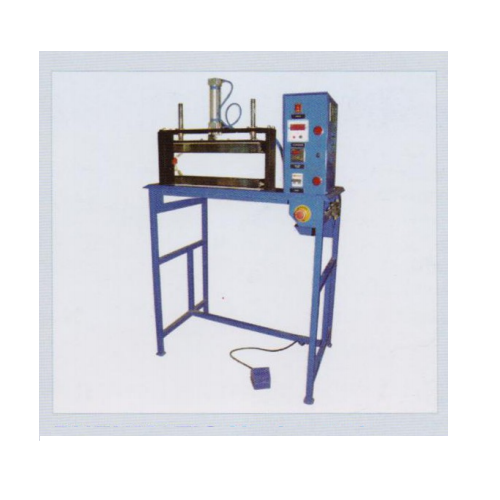

continuous bag sealer, pneumatic operated pouch sealerPneumatic Operated Pouch Sealer/Direct Heat Sealer


Features
  • Pneumatic Operation
  • Sealing length and Width to suit your requirements
  • Electronic Temp. Control
  • Electronic Timer

Specification
  • Custom Built
pneumatic operated pouch sealer/direct heat sealer


continuous bag sealer, pneumatic operated pouch sealer
